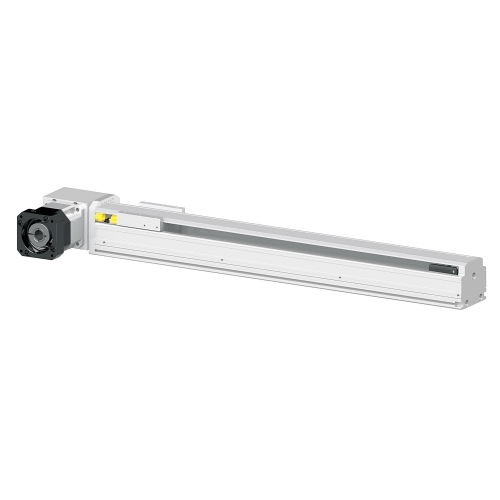

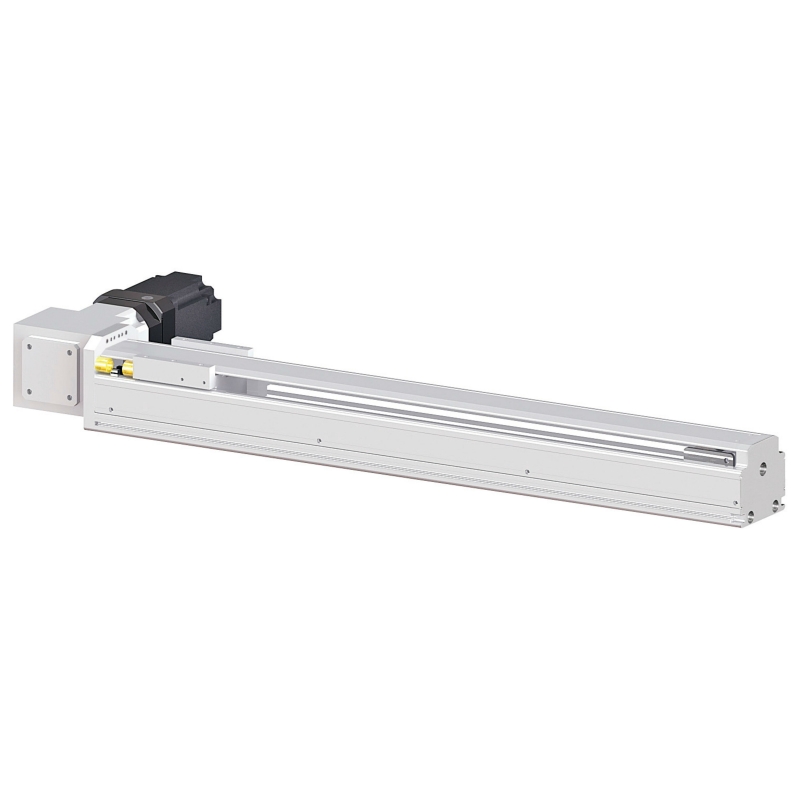

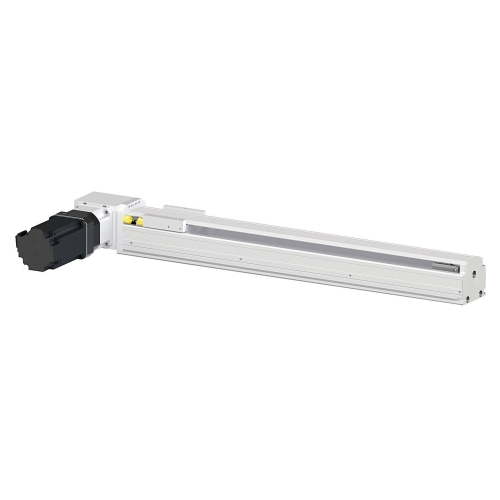

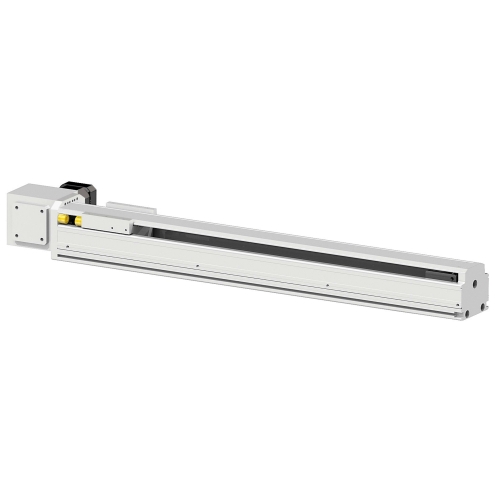

STW70 Series Single Axis Robot (Flat Slides)

Product Features:

A. Diversified products, easy to match, and tailor-made special customized products.
B. Single shaft can be used in any combination for multi-axis, easy to assemble and maintain.
C. Motor connection can be selected according to the space used, the motor is left, the motor is right, etc.

Precautions for use:

  • (1) Load and installation
  • 1. The maximum handling quality contained in the catalogue is standard. If you have other special load requirements, please contact us.
  • 2. When the screw drive product is used vertically (Z-axis), it is recommended to use a brake device to prevent the item from slipping.
  • 3. If the actual load center of gravity is too large from the load center of the slide table, it may cause excessive torque, vibration or slow response. It is recommended that the actual load center of gravity be used within the specification as much as possible.

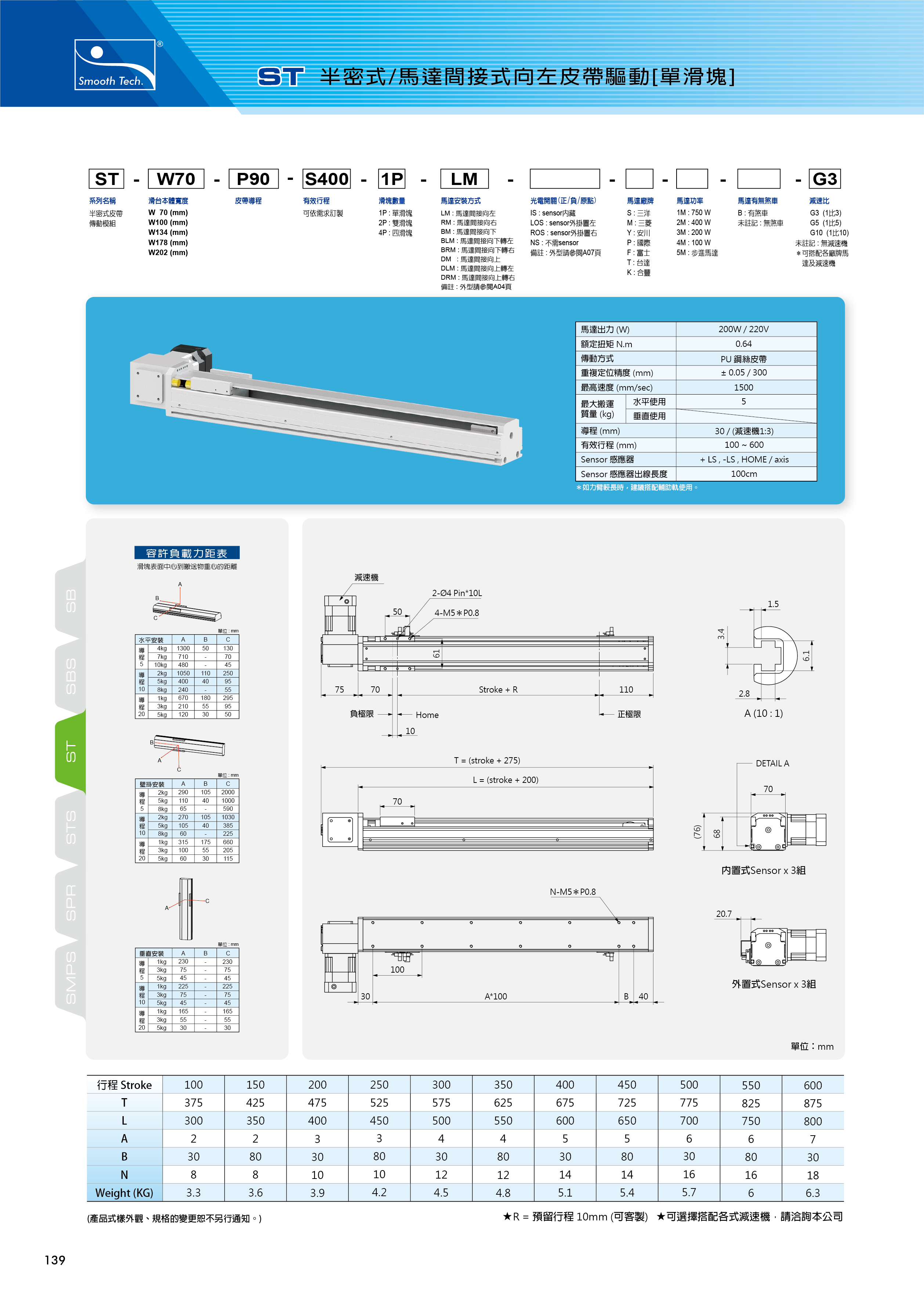

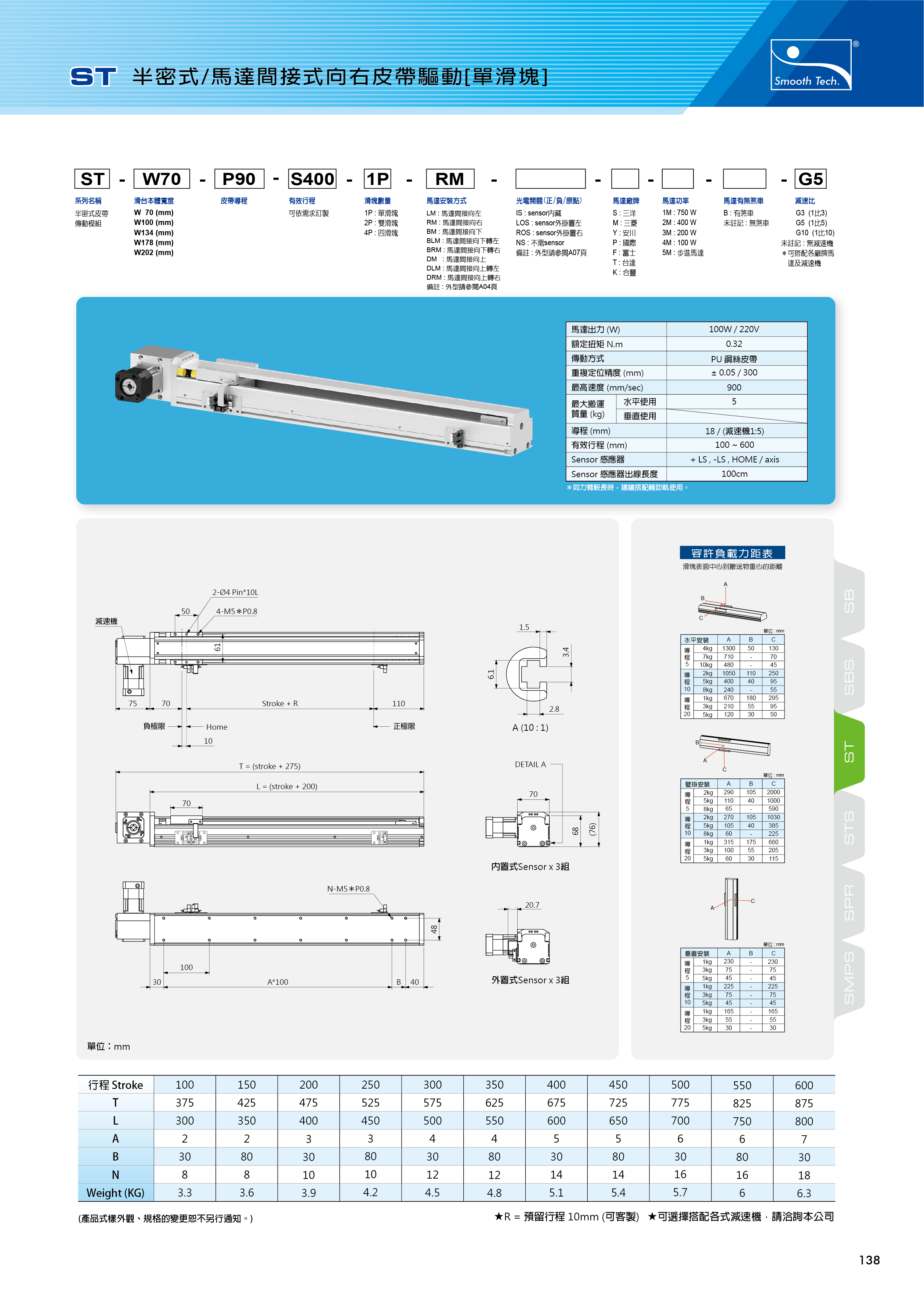

Product specifications:

​​​​​​​
